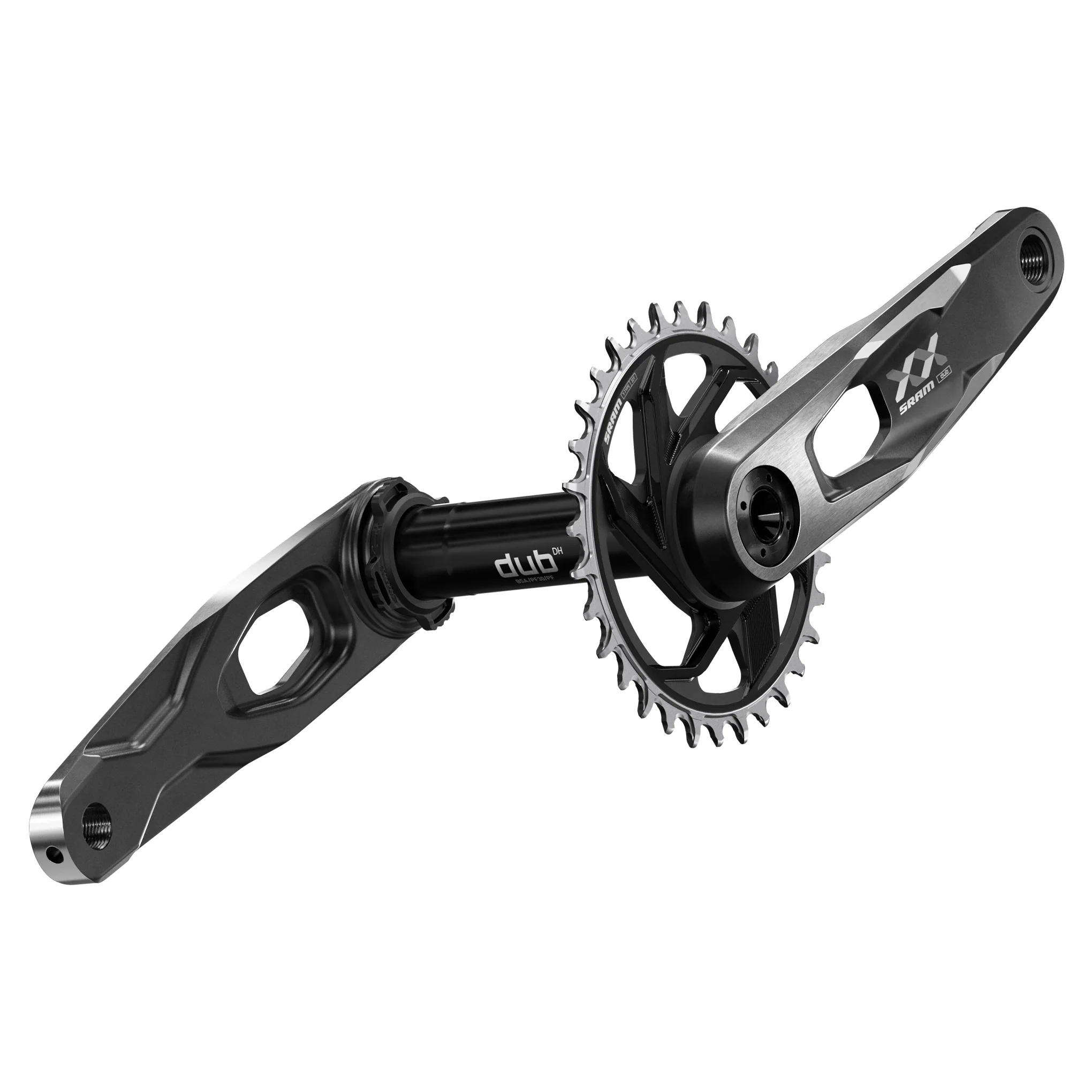

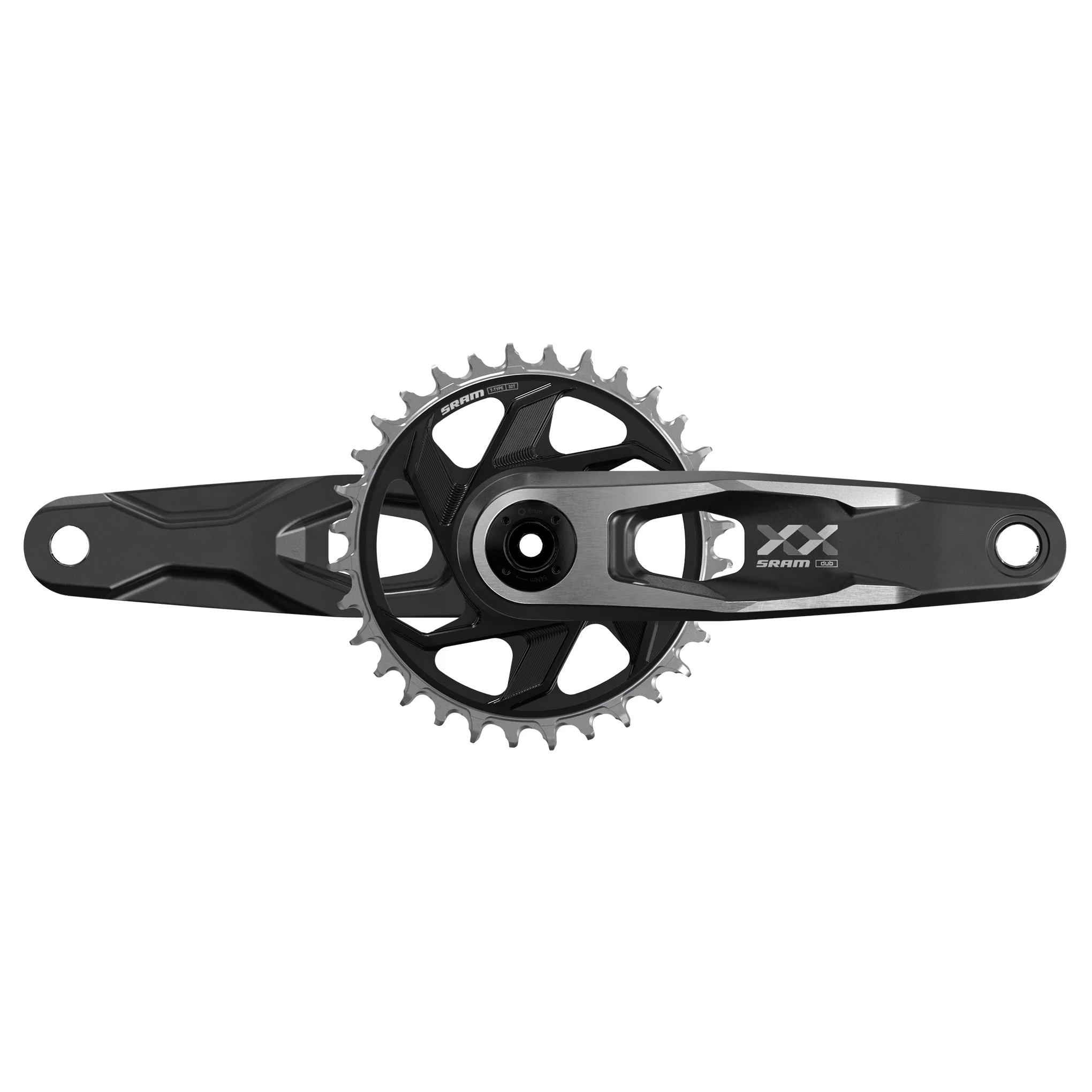

Uncompromising durability and performance for DH is here with their new XX DH Transmission Crankset. Taking cues from their best aluminium crank, they designed ground up for a purpose built best-in-class strength to weight DH crankset. The robust arms are available in progressively short lengths down to 150mm and feature machined surfaces in high-wear and rock strike prone areas. Keeping your cranks looking fresh for longer. By increasing folding and impact resistance, the all-new XX DH T-Type chainring for 56.5 chainline is specifically designed to withstand the heaviest demands of downhill riding.

Features

• Their most durable aluminium crankset yet, with robust machined finishes on high-wear surfaces and rock strike prone areas
• DUB DH spindle for 56.5mm chainline, for either 157mm or 148mm rear hub spacing
• DUB Wide spindle for 55mm chainline, optimised for 148mm rear hub spacing
• DUB DH spindle cranksets include most robust dedicated 56.5CL
• XX DH T-Type chainring available in 32-36t sizes
• DUB Wide spindle cranksets include trail orientated XX T-Type chainring in 32-36t sizes
• Available in progressively short 150mm, 155mm, 160mm and 165mm lengths

Specifications

• Model: XX DH Transmission Crankset
• Product code: FC-XX-DH-A1
• Speed: 12s T-Type, 7s T-Type
• Chainring sizes: 32T, 34T, 36T
• Crank arm lengths: 150mm, 155mm, 160mm, 165mm
• Weight: 701g
• Spindle: DUB
• Colour: Black
• Bottom bracket compatibility: All SRAM MTB Wide DUB BBs, DUB BSA MTB 83, DUB PF MTB 104.5/107
• Material: Aluminium
• Spindle options: DUB DH, DUB Wide
